From Vinyl to Chromecast with Home Assistant And ESPHome

I used ESPHome and Home Assistant and an open-source Python API to build a way to scan my vinyl albums’ barcodes and have them play using spotify over my home’s Chromecasts.

ESPHome Hardware

This project started with an idea: I wonder if I can make esphome read barcodes. Turns out, the answer is an emphatic yes. There are a few projects out there already, but they had one drawback - the UART interface barcode scanners they were using meant that you had to bring the item up to the scanner to scan. I wanted a handheld wireless scanner.

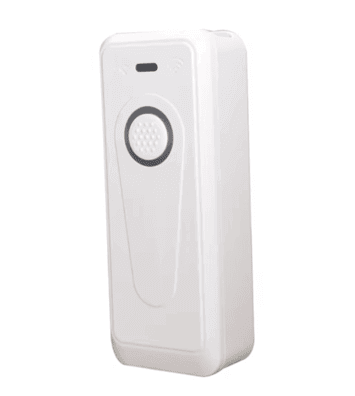

There are lots of handheld barcode scanners for sale, I bought an inexpensive one from Aliexpress for around $15. It operates as a USB HID Device - a USB Keyboard. When its USB dongle is plugged into a computer, scanning a barcode will type it into a text field. This particular scanner has a USB recharable battery and a speaker/led to indicate scanning success on the handheld unit.

My first attempt to make that readable by an ESP was using a CH9350 HID module. This module takes a USB device in and then outputs HID codes over UART. I was able to get this working with an ESP32, but ran into difficulty trying to convert the HID codes into ASCII characters. Jann created an example library that I tried to adapt, but I wasn’t able to get it working inside of ESPHome. The CH9350 has some interesting capabilities, I hope I can get it working with ESPHome in the future and share a component for others to use.

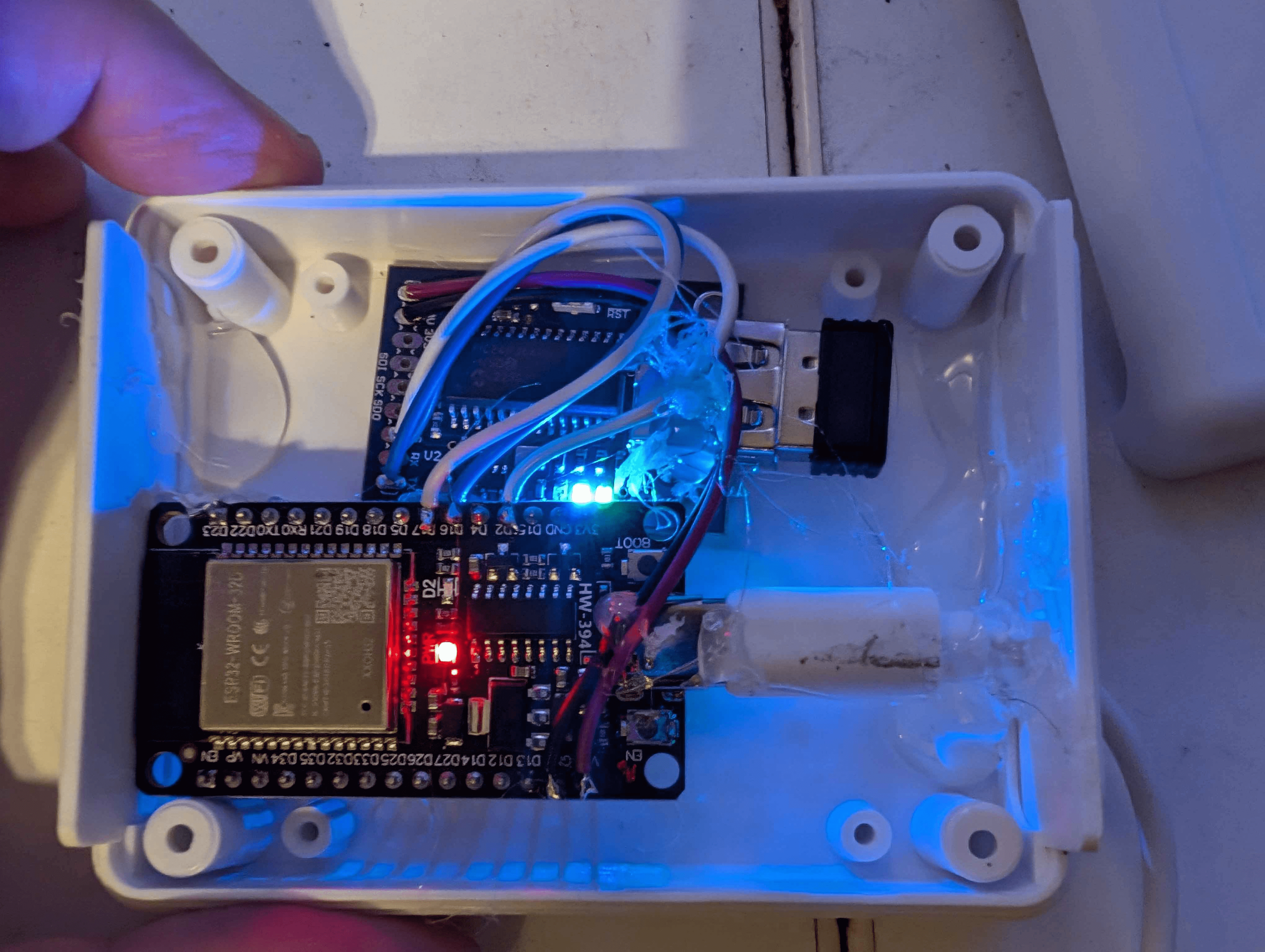

Thankfully for this project, Hobbytronics had me covered with their USB Host Controller Board. For £18, I had to write no code at all. Their pre-loaded firmware did exactly what I want - output the ASCII characters that my HID barcode scanner was “typing”. I connected this to an ESP32’s UART pins and stuck both of them in a small project box with plenty of hot glue to hold everything in place.

The ESPHome device config is intentionally bare bones. A text sensor is setup using a component that listens for a string coming in via serial. After 10s, the text sensor is reset to “blank” to allow retriggering of the same album. The rest of the config is just ESPHome boilerplate.

 1# Basic Config
 2esphome:
 3  name: lr-barcode-scanner
 4
 5external_components:
 6  # use serial from ssieb's components
 7  - source:
 8      type: git
 9      url: https://github.com/ssieb/esphome_components
10    components:
11      - serial
12
13esp32:
14  board: esp32dev
15  framework:
16    type: esp-idf
17
18wifi:
19  ssid:
20  password:
21
22api:
23
24ota:
25  platform: esphome
26
27web_server:
28  port: 80
29
30logger:
31  level: VERBOSE
32
33uart:
34  id: uart_bus
35  tx_pin: GPIO17
36  rx_pin: GPIO16
37  baud_rate: 9600
38  debug:
39    direction: BOTH
40    after:
41      delimiter: "\n"
42
43# Define a text sensor for the ASCII output
44text_sensor:
45  - platform: serial
46    uart_id: uart_bus
47    name: Album Barcode
48    id: album_barcode
49    # reset the barcode back to "blank" after 10 seconds
50    on_value:
51      then:
52        - delay: 10s
53        - lambda: |-
54            if (id(album_barcode).state != "blank") {
55              id(album_barcode).publish_state("blank");
56            }
57  - platform: version
58    name: ${name} ESPHome Version
59  - platform: wifi_info
60    ip_address:
61      name: ${name} IP Address
62    ssid:
63      name: ${name} SSID
64    bssid:
65      name: ${name} BSSID
66
67sensor:
68  - platform: wifi_signal
69    name: ${name} WiFi Signal
70    update_interval: 300s
71  - platform: uptime
72    name: ${name} Uptime
73    unit_of_measurement: h
74    filters:
75      - lambda: return int((x + 1800.0) / 3600.0);
76
77binary_sensor:
78  - platform: status
79    name: ${name} status
80
81switch:
82  - platform: restart
83    name: ${name} Restart

Barcode Lookup API

With a way to scan barcodes, I needed a way to look them up and get a Spotify ID. I use Discogs to organize my vinyl collection, and it offers an API. Combining that with the Spotify API, I had access to the data I needed.

After researching options to run python scripts in Home Assistant, I decided it would be worth the extra effort to run this code as an external service and then query it in Home Assistant with a RESTful Command. I have some other plans for the API in the future and it gave me a good excuse to play with some FastAPI skills.

The Discogs and Spotify APIs have fair limits for APIs, but to try to limit the amount of outbound calls, the Barcode API uses a DB as a cache. I deployed the API into my homelab k8s cluster and mounted a 500mb PVC to the pod for SQLite. If you’d like to deploy it for yourself, there is a Docker image and it takes its config via env vars. Maybe I’ll even write a proper README someday

I had to do some very basic data cleaning because the Discogs API returns odd results for artists. For example, Tool is returned as “Tool (2)”, which the Spotify API doesn’t like. I suspect there will be more bugs as I use this system with more than the 20 albums I grabbed out of the my collection.

Home Assistant

After adding my barcode scanner to Home Assistant via the ESPHome integration, I needed an automation to trigger when a barcode was scanned.

 1alias: Play Album on Spotify
 2description: Play an album from its barcode
 3triggers:
 4  - entity_id:
 5      - sensor.album_barcode
 6    trigger: state
 7conditions:
 8  - condition: template
 9    value_template: "{{ trigger.to_state.state not in ['unknown', 'unavailable', 'blank'] }}"
10actions:
11  - action: rest_command.barcode_api
12    metadata: {}
13    data:
14      barcode: "{{ trigger.to_state.state }}"
15    response_variable: barcode_response
16  - if:
17      - condition: template
18        value_template: "{{ barcode_response['status'] == 200 }}"
19    then:
20      - action: tts.speak
21        metadata: {}
22        data:
23          cache: false
24          language: en-au
25          media_player_entity_id: media_player.andrew_office_speaker
26          message: >-
27            Playing {{ barcode_response['content']['name'] }} by {{
28            barcode_response['content']['artist'] }}.
29        target:
30          entity_id: tts.google_en_com
31      - delay:
32          hours: 0
33          minutes: 0
34          seconds: 3
35          milliseconds: 0
36      - action: spotcast.start
37        metadata: {}
38        data:
39          limit: 20
40          force_playback: false
41          offset: 0
42          ignore_fully_played: false
43          device_name: Andrew Office speaker
44          uri: spotify:album:{{ barcode_response['content']['spotify_id'] }}
45    else:
46      - if:
47          - condition: template
48            value_template: "{{ barcode_response['status'] == 404 }}"
49        then:
50          - action: tts.speak
51            metadata: {}
52            data:
53              cache: false
54              language: en-au
55              media_player_entity_id: media_player.andrew_office_speaker
56              message: >-
57                Error {{ barcode_response['content']['detail'] }}
58            target:
59              entity_id: tts.google_en_com
60mode: single

The automation looks for the text sensor’s state to change and then submits that to the API via a RESTful command. If the API returns a 200, it uses TTS to speak the artist and album name and then starts playing using Spotcast. If the automation gets a 404, it uses TTS to read back the error message (which usually results in a cheerful robot reading out a 12 digit number UPC-A.)

Parts list and final costs

• ESP32 WROOM-32 Development Board ~$4
• Hobbytronics USB Host Controller Board v2.4 ~$23
• USB Wireless Barcode Scanner - $15
• Project Box, USB C cable, hookup wires, hot glue, solder ~$4

Total ~$46

What’s Next?

This project was a proof of concept to reliably reading barcodes with ESPHome. In the future, I want to setup a scanner in my kitchen for use with a grocery ERP to track our groceries and household goods.

The music player is really a toy. It’ll be a neat thing to show off to visitors that gets used occasionally. My total cost wasn’t much for a fun demo and for learning more about ESPhome, Barcodes, HID devices, and Home assistant. I’ll eventually replace the turntable.
